Mercedes W204 Tail Light Problems? Check the Bulb Holder Before Buying a Whole Tail Light

If the rear light on your Mercedes-Benz W204 has started acting a little possessed — dim one minute, working the next, then throwing a bulb warning on the dash — don't assume another new globe will solve it.

On early W204 C-Class sedans, the problem can be further inside the lamp: the rear tail light bulb holder, electrical contacts or wiring connector. For owners of 2007–2010 W204 sedans, checking these parts first can save a lot of unnecessary parts swapping.

View the Mercedes W204 Tail Lamp Bulb Holder with Bulbs →

Why Does a Mercedes W204 Tail Light Keep Failing?

The W204 rear lamp uses a bulb carrier with metal electrical tracks feeding several bulbs. When the electrical connection at the carrier or plug develops excessive resistance, heat can build up around the terminal.

The result may start innocently enough: a dashboard bulb warning or one rear lamp that looks slightly dimmer than the other. Leave it long enough and owners have reported discoloured terminals, damaged connectors and even melted plastic around the bulb holder.

This isn't just workshop folklore. Mercedes-Benz documented a rear-lamp ground-connection issue on certain W204 vehicles in the US, where increased resistance could cause dimming or loss of rear-light functions.

5 Signs the Bulb Holder Deserves a Closer Look

• The dashboard keeps showing a rear lamp or bulb warning.
• One tail light is noticeably dimmer than the other.
• The brake light, indicator or tail lamp works intermittently.
• Replacing the bulb does not permanently fix the problem.
• The connector or bulb holder shows brown marks, blackened terminals, distortion or melted plastic.

One 2009 Mercedes C300 owner reported that the original housing had been damaged after a bad connector melted into it. After replacing the plug and fitting a new holder, the rear light worked correctly. That's an important lesson: inspect the plug as well as the bulb carrier.

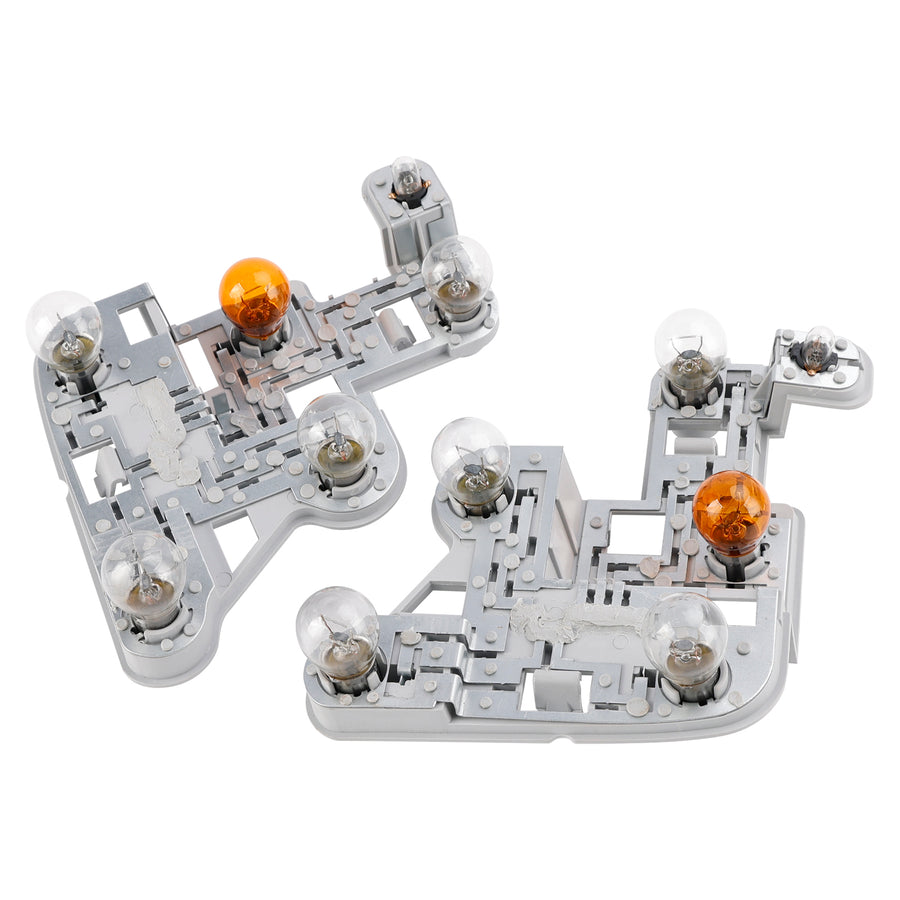

A2048201500 vs A2048201600: Which Side Do You Need?

The two bulb holders may look similar, but they are side-specific:

Left rear: A2048201500 / 2048201500
Right rear: A2048201600 / 2048201600

For Australian right-hand-drive cars, the left side is normally the passenger side and the right side is the driver's side. Still, don't order using “driver side” or “passenger side” alone. Match LEFT or RIGHT as viewed from the driver's seat, compare your existing holder and check the OE number whenever possible.

Will It Fit My W204?

The UCarPart replacement is intended for 2007–2010 Mercedes-Benz W204 C-Class sedans with the original halogen rear lamp configuration.

It is not intended for Wagon/Estate versions or incompatible LED-style rear lamp configurations. Because Mercedes specifications can vary by build date and market, especially around model updates, checking the old part number and visually comparing the carrier before ordering is the safest approach.

Before Installing a New Holder, Check the Connector

Here's the part people sometimes miss.

If your old bulb carrier is burnt around the connector, simply plugging a new carrier into the same heat-damaged terminal may not solve the underlying electrical problem. Inspect the connector pins, wiring and especially the earth connection for overheating, corrosion or looseness.

If the plug is melted or wiring insulation is damaged, have the connector repaired or replaced before installing the new holder. If you're not comfortable repairing automotive wiring, this is a good job for an auto electrician.

A Small Part That Can Save a Bigger Repair

A W204 tail light warning can be annoying, but troubleshooting it doesn't need to begin with an entire new lamp assembly.

If the lens and housing are still good, replacing a damaged bulb carrier — while repairing any connector problem at the same time — can be a practical way to get the brake lights, indicators and rear lamps working correctly again.

Match your OE number, check your connector and choose the correct side before ordering.

Shop Mercedes W204 Tail Lamp Bulb Holders →

Mercedes W204 Tail Light FAQ

What OE number is the left W204 tail lamp bulb holder?

The left rear bulb holder uses OE reference A2048201500 / 2048201500.

What OE number is the right W204 tail lamp bulb holder?

The right rear bulb holder uses OE reference A2048201600 / 2048201600.

Can a bad bulb holder cause a tail light warning?

Yes. Poor electrical contact, damaged terminals or excessive resistance at the bulb carrier and connector can cause intermittent lights, dim lamps or bulb warnings even when the bulb itself is still usable.

Should I replace the connector too?

Not automatically. But if you find melting, blackened terminals, corrosion or heat damage at the plug, the connector and wiring should be repaired rather than connecting a new holder to a damaged electrical terminal.
