Trailer 10"-5 on 4-1/2 Hub Drum Kits w/-10" Electric Brakes 3.5K Axle

Features:
Electric brakes are easier to install and offer more user control than hydraulic brakes
Require only an electric brake controller - no actuator or hydraulic lines necessary
Automotive-grade friction material is molded to brake shoes
Pads are fully bonded - not riveted - to shoes for long life and more braking torque
Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
Periodic manual adjustment required

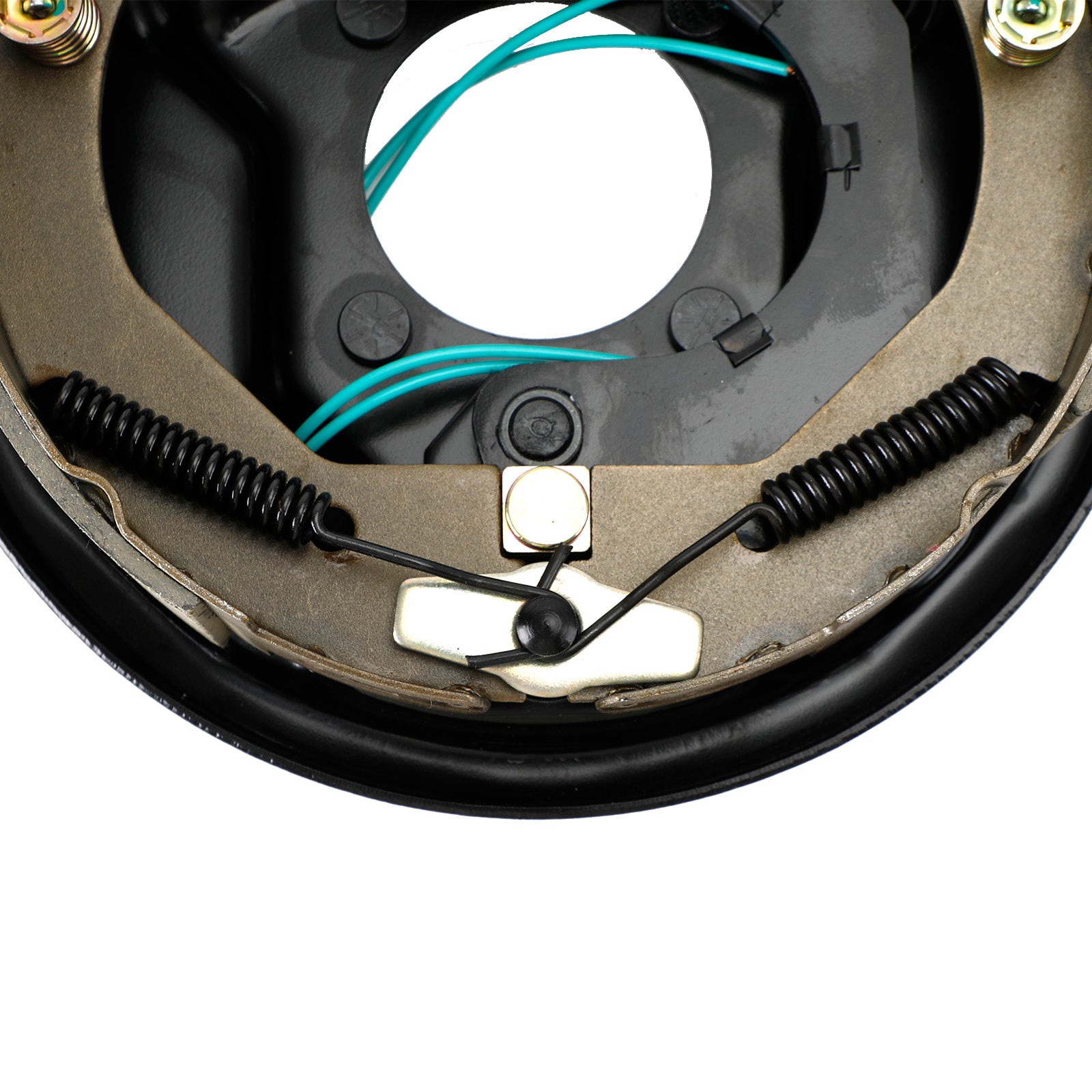

Fine-tooth brake adjustment gears allow for a more precise setting
E-coated backing plates resist wear and corrosion
Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes

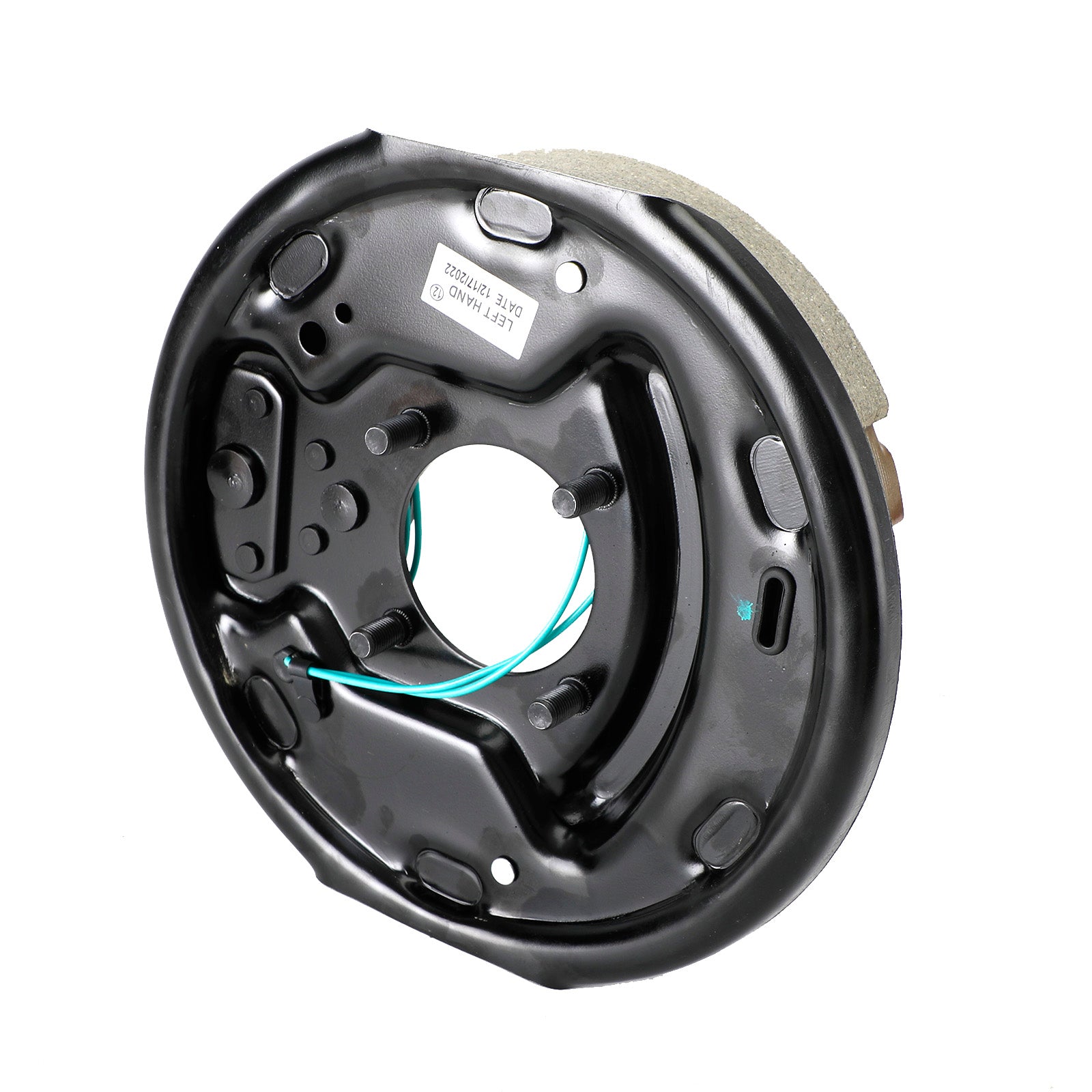

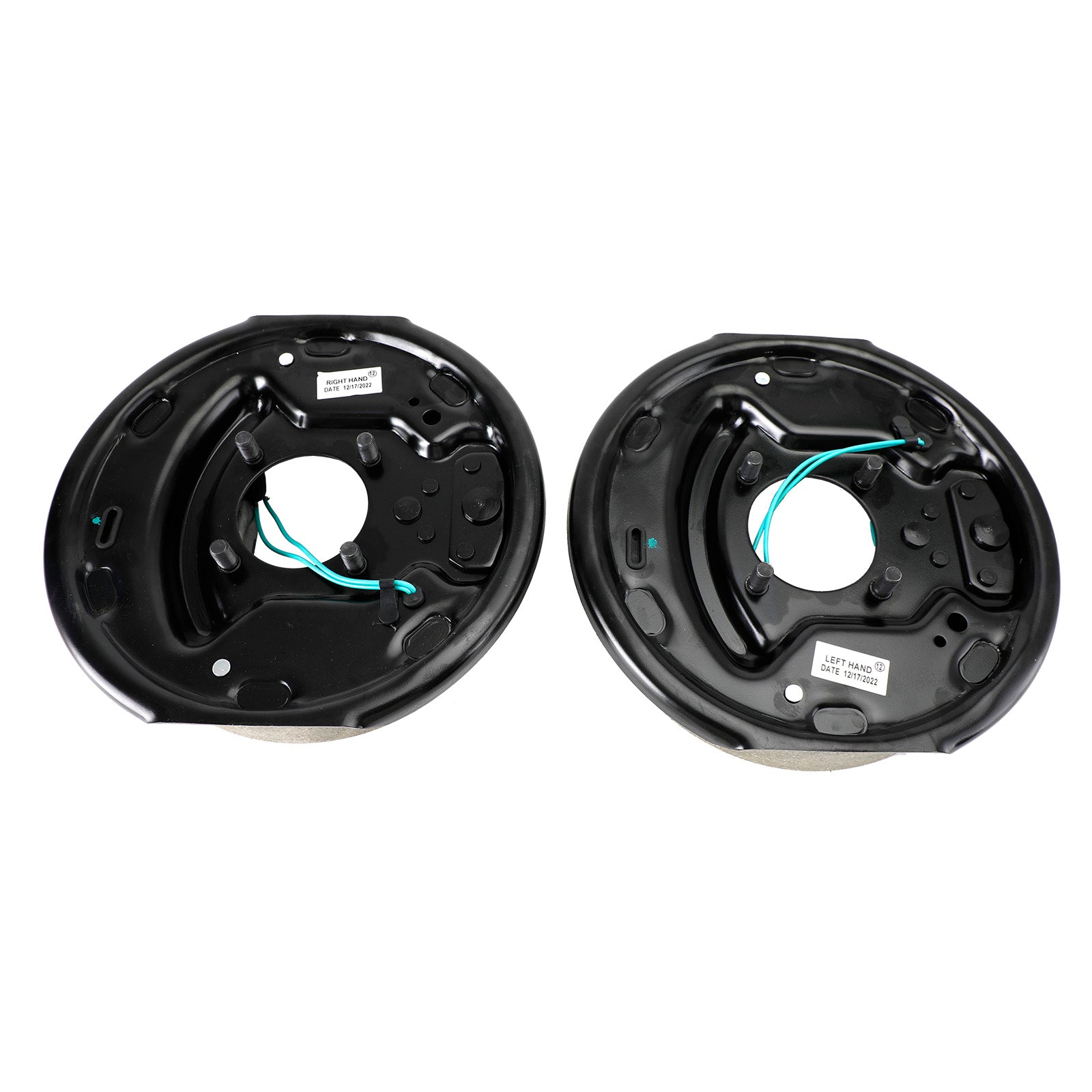

Left-hand (driver's-side) brake assembly, right-hand (passenger's-side) brake assembly, and mounting bolts included
QAI and CSA certified

Specification:
Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
Dimensions: 10" diameter x 2-1/4" wide
Mounting flange bolt pattern: 4 bolt
Wheel size: 14" and 15"
Axle rating: 3,500 lbs

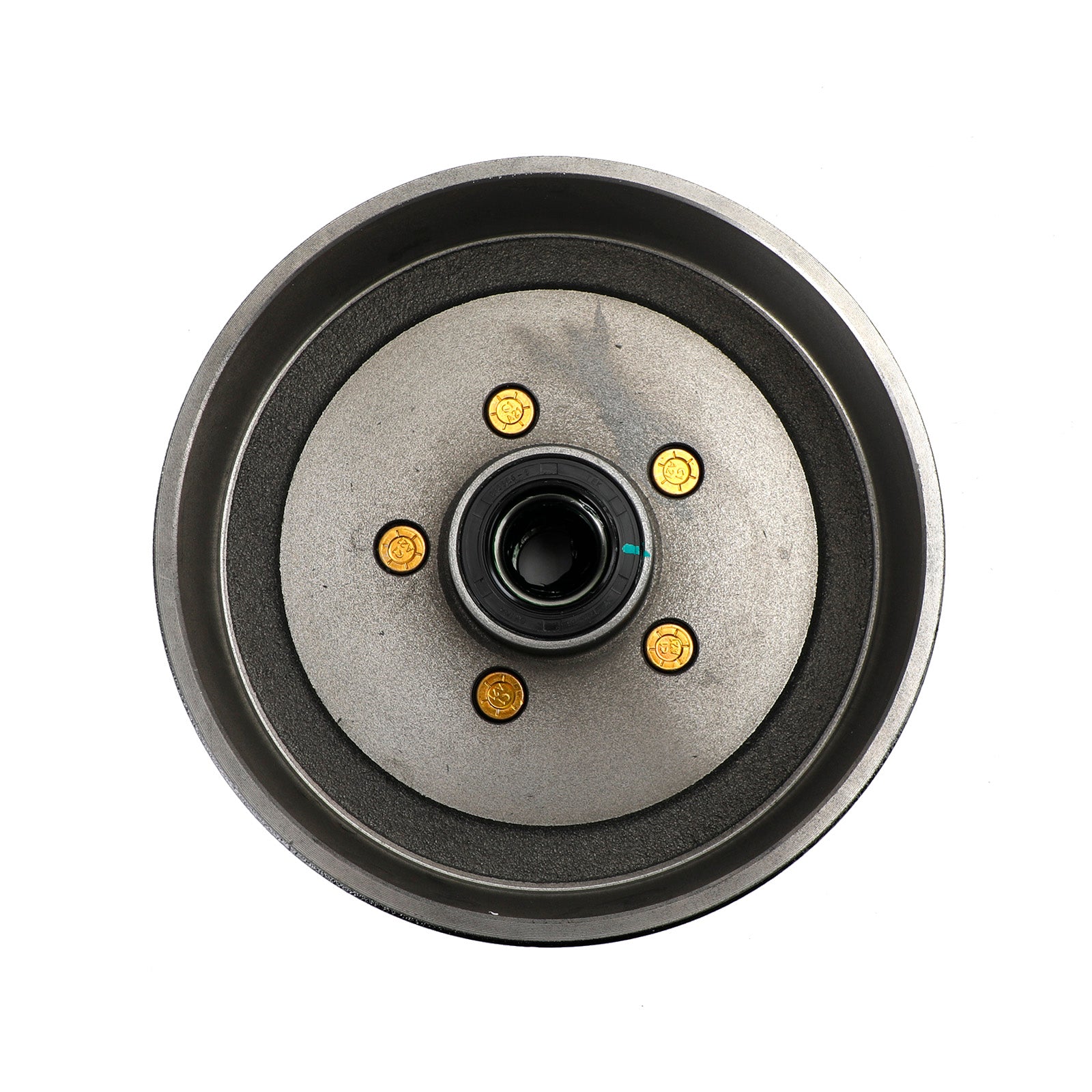

Actual drum dimensions: 10" diameter x 2-1/2" wide
Works with 10" brake assembly
Bolt pattern: 5 on 4-1/2"

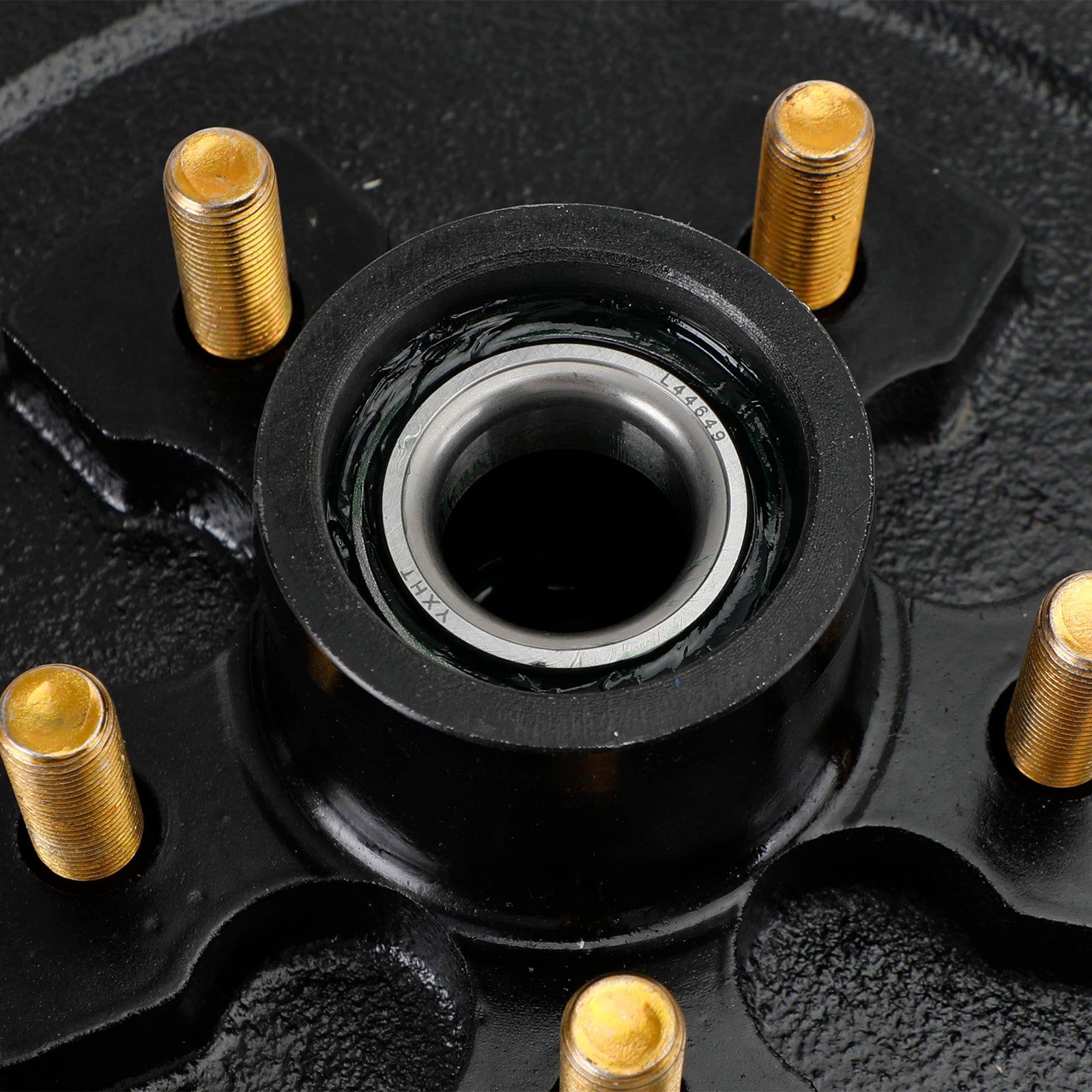

Wheel studs: 1/2" diameter x 1-1/4" long
Grease cap flange diameter: 1.99"
Weight capacity: 1,750 lbs

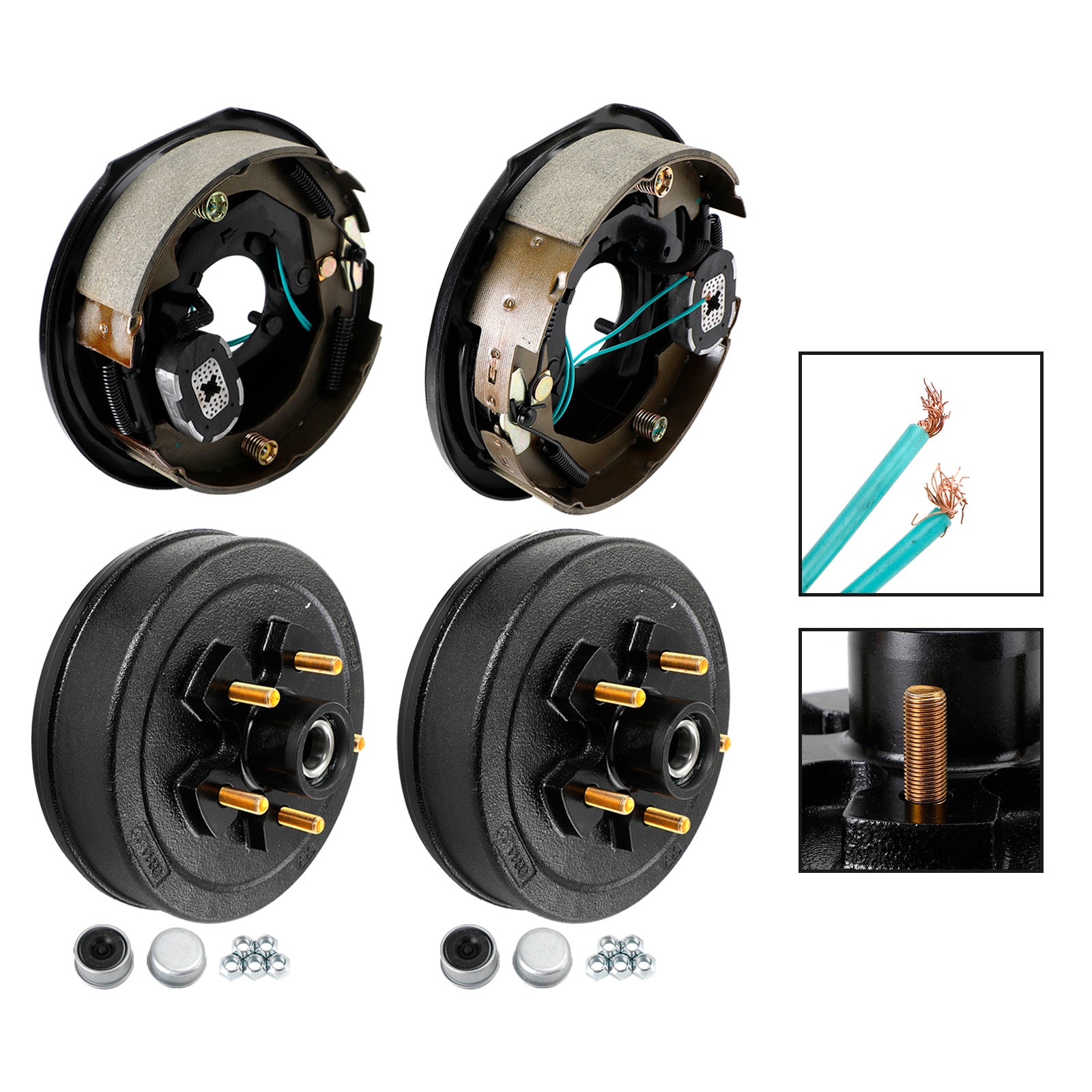

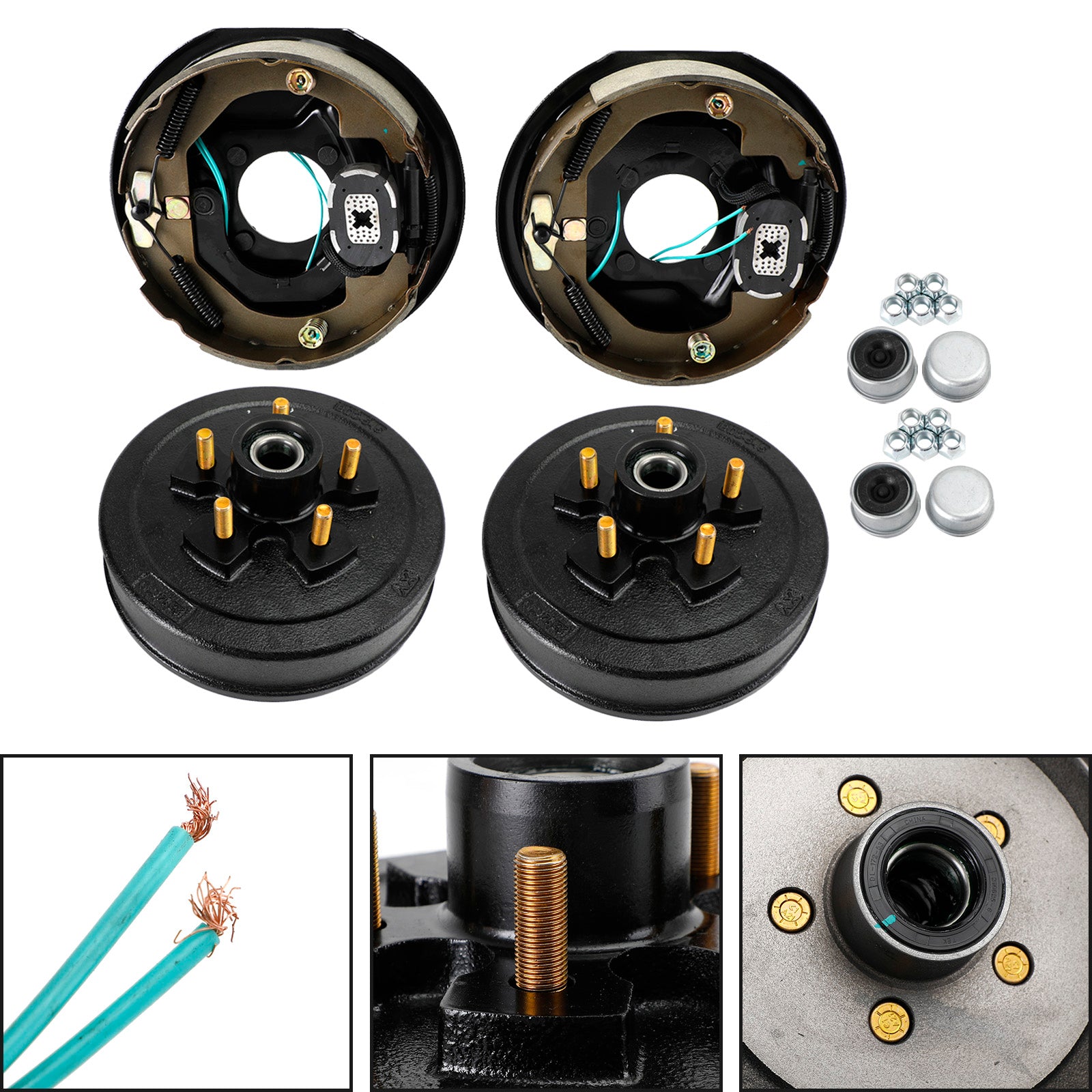

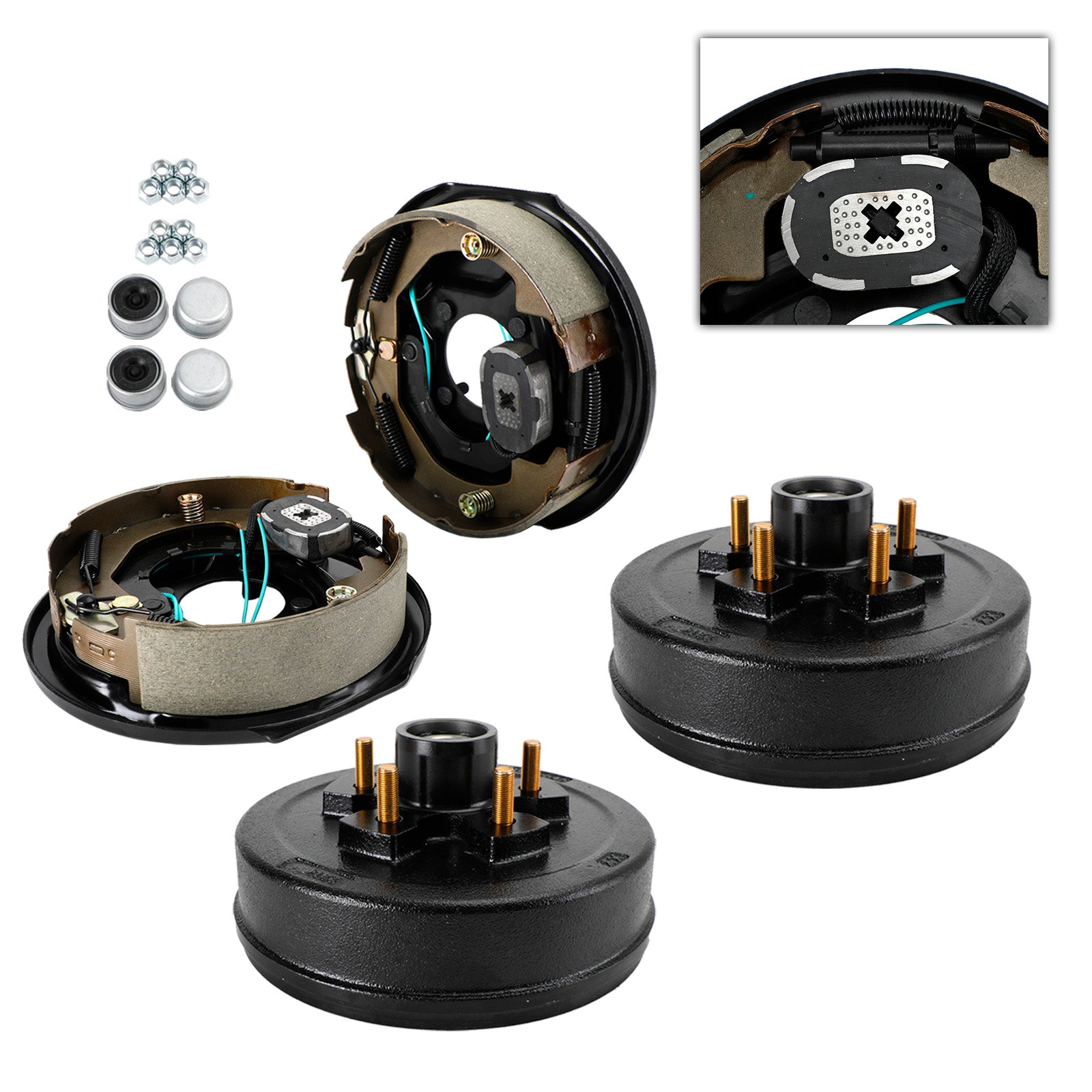

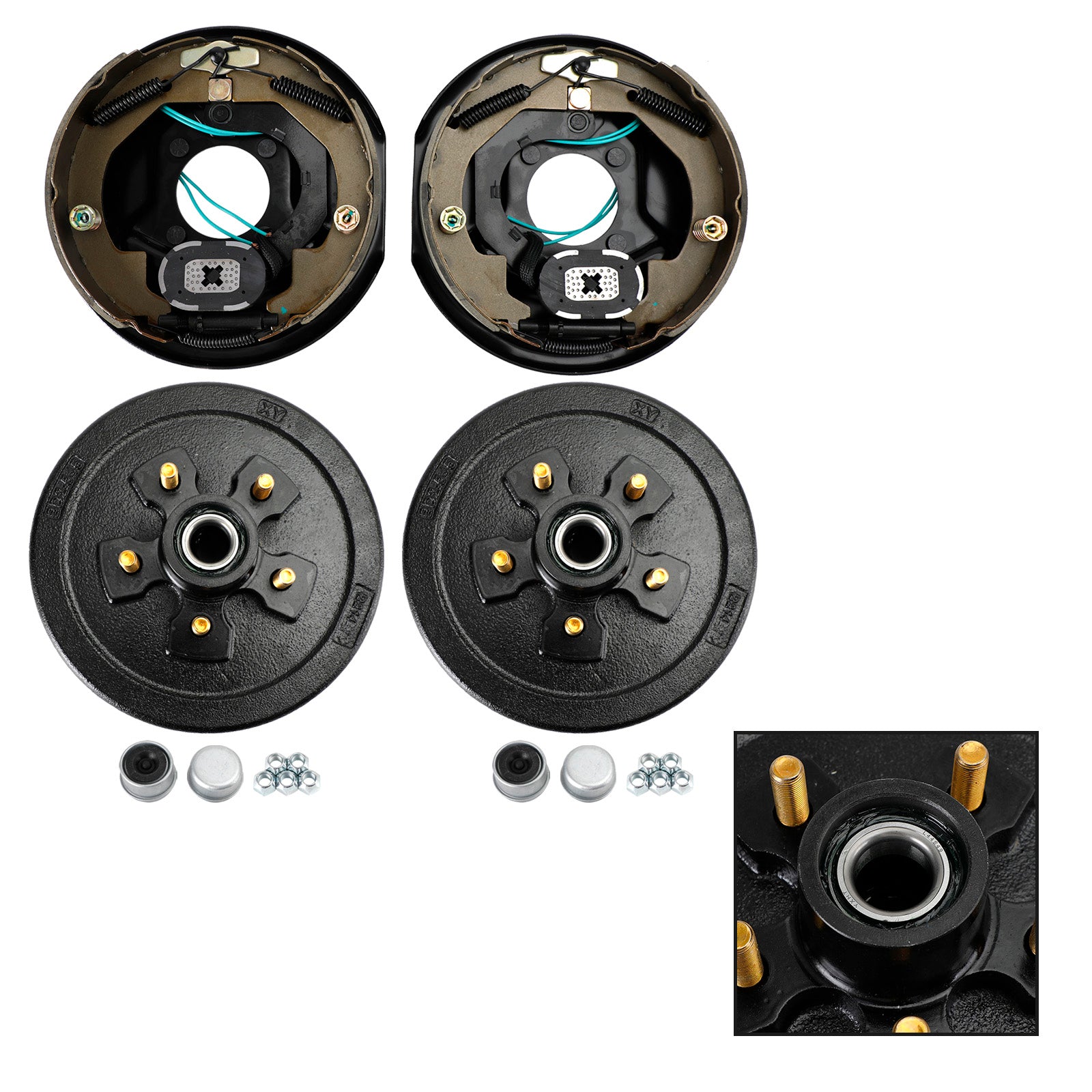

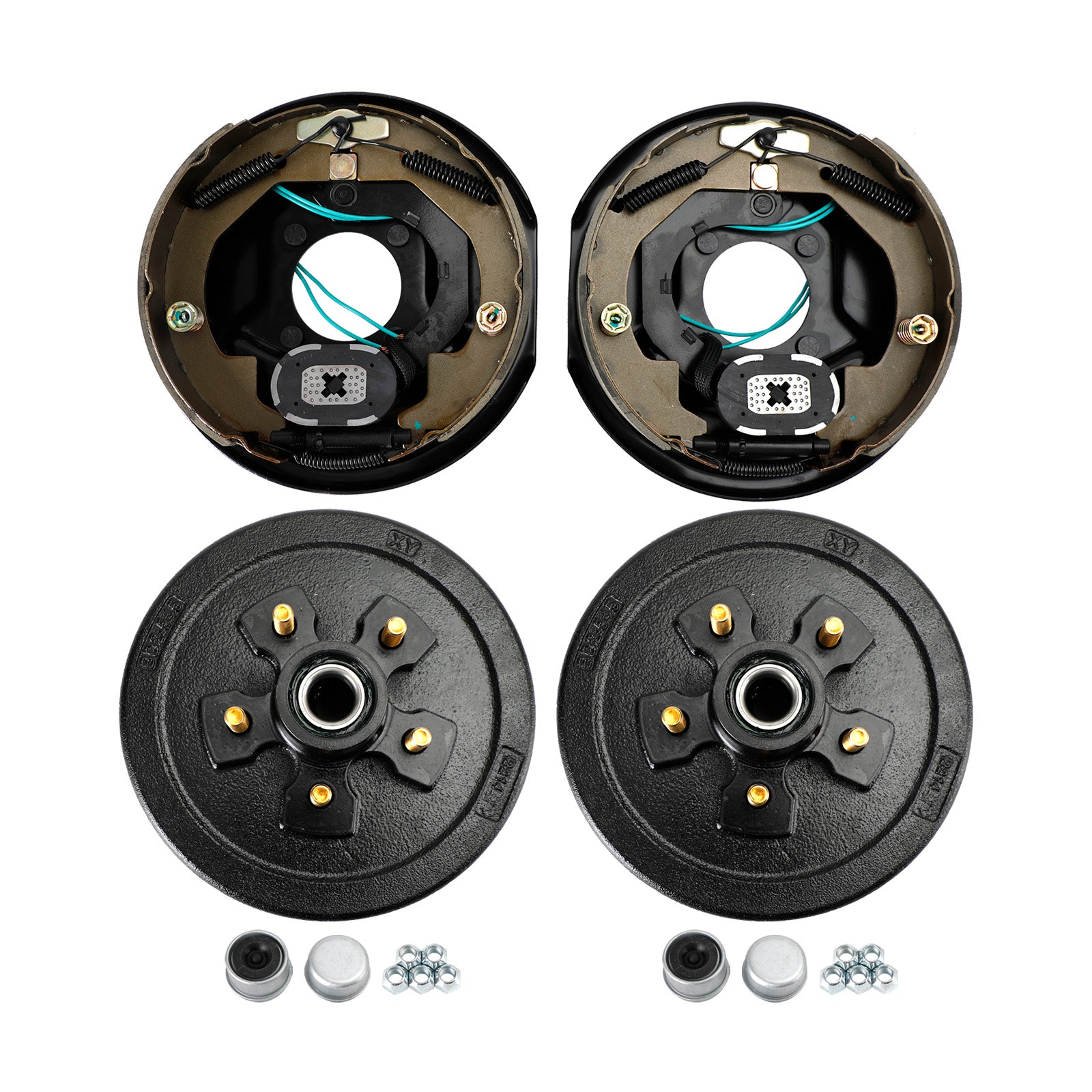

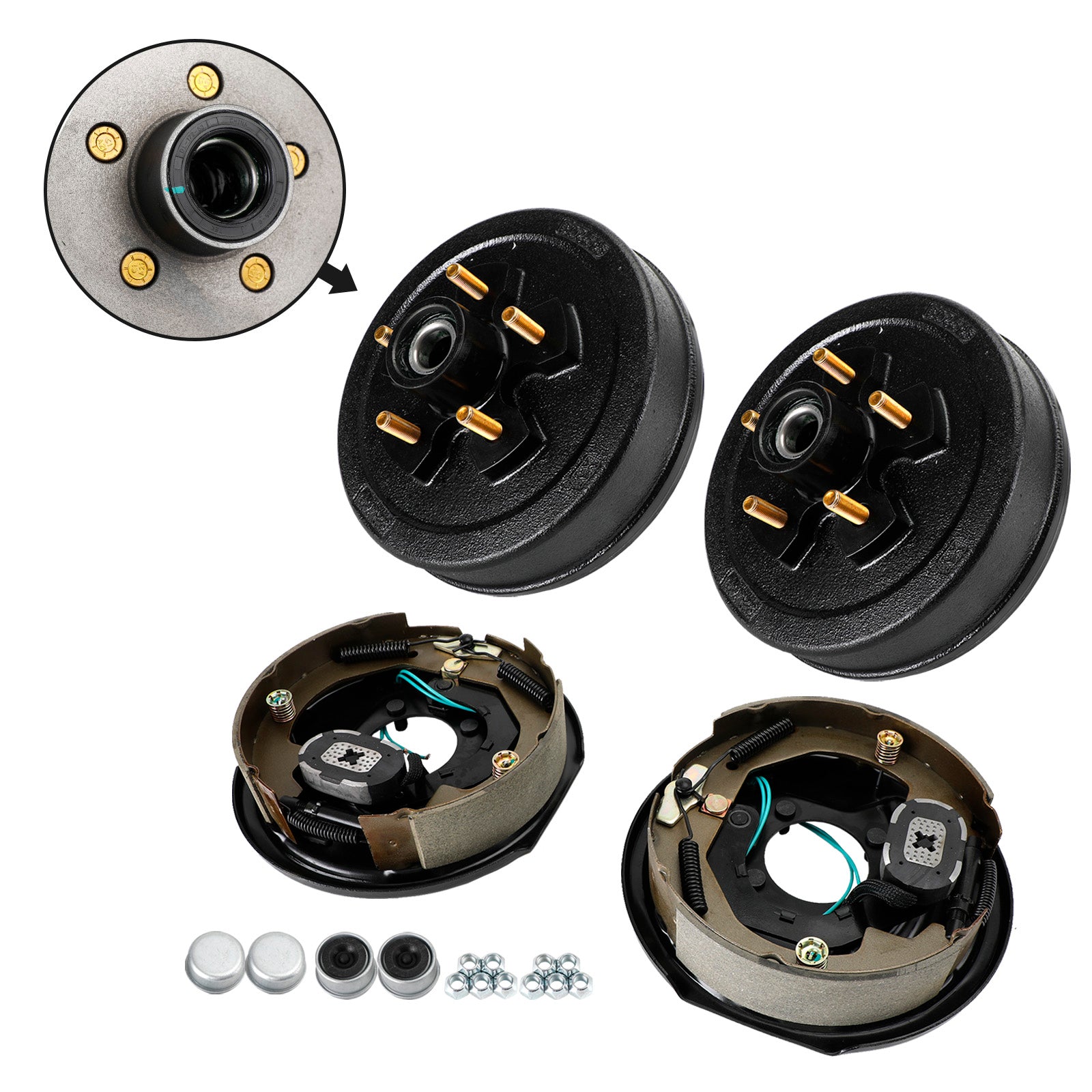

Kit includes:
2 x 10"-5 on 4-1/2 brake drums
1 x 10" x 2-1/4" electric brake assembly LH
1 x 10" x 2-1/4" electric brake assembly RH
